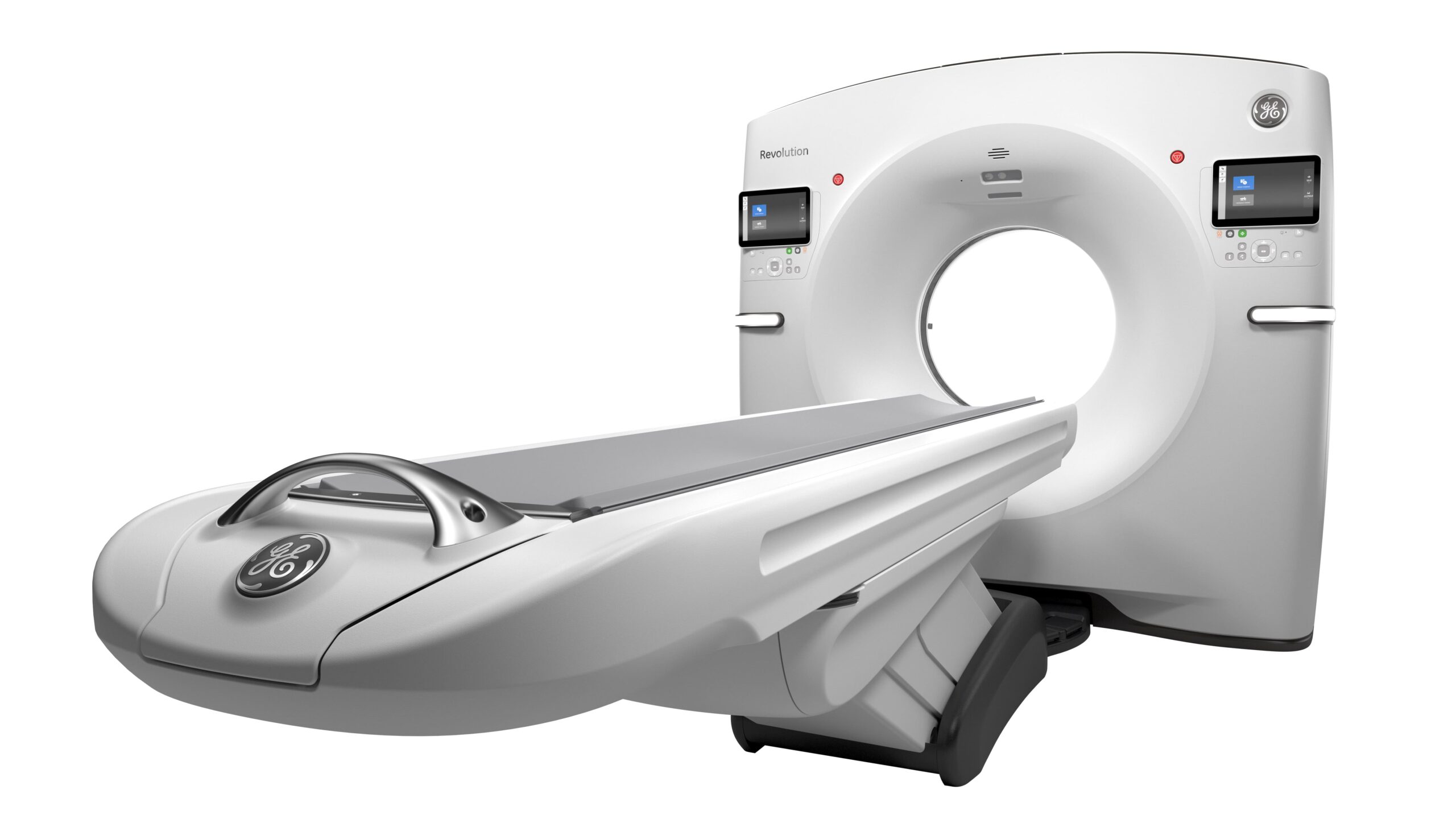

The Revolution Maxima is an advanced, high-performance computed tomography (CT) scanner powered by artificial intelligence (AI) technology, designed to deliver exceptional clinical performance, streamline workflow, and enhance operational efficiency. Available in two configurations—55 KW and 72 KW—this system is built to meet the demanding needs of healthcare providers seeking superior imaging quality, improved patient care, and higher throughput.
At the core of the Revolution Maxima is the Clarity Imaging Chain, which integrates the Clarity Detector, DAS (Data Acquisition System), Performix™40 Plus X-ray Tube, and ASiR-V™ / ASiR™ reconstruction technologies. This powerful combination enables high-resolution imaging, with significant improvements in spatial resolution and noise reduction. Compared to previous GE technologies, Clarity Imaging Chain delivers up to a 20% enhancement in spatial resolution for clearer, more accurate imaging.
Designed with AI-powered capabilities and optimized for both clinical versatility and patient safety, Revolution Maxima provides significant benefits such as reduced patient radiation exposure and faster scan times. For example, the system’s high-pitch capabilities and 0.35-second rotation speed enable quicker scans, reducing the need for sedation and minimizing motion artifacts. In trauma scenarios, the system can perform a full-body scan (1000 mm) in just 6 seconds.
Key Features of Revolution Maxima (55 KW & 72 KW):
- Clarity Imaging Chain: Achieves higher spatial resolution, lower noise, and fewer artifacts for improved image quality in real-world clinical situations.
- Performix™ 40 Plus X-ray Tube: Features a liquid metal bearing design for enhanced durability, fast rotation, and increased patient throughput.
- Advanced Detector Design: The Clarity Detector boasts 98% absorption efficiency and up to 54,272 individual elements for high-resolution imaging at 0.625mm slice thickness.
- Faster Scans: Utilize helical pitches up to 1.531 and 0.35-second rotation speeds, reducing scan times and improving patient experience.
- AI-Driven Reconstruction: The ASiR-V™ (or ASiR™) reconstruction technology enhances image quality while significantly lowering radiation doses—improving low contrast detectability and image clarity.
- Flexible Power Options: Choose between 55 KW or 72 KW configurations to meet specific clinical and facility needs.
- System Components: Gantry: Advanced slip-ring design for smooth, continuous rotation, featuring a 70 cm aperture and a maximum SFOV of 50 cm.
- X-ray Tube: Performix 40 Plus with 7.0 MHU storage for optimized cooling and long-lasting performance.
- Clarity DAS: Advanced Data Acquisition System with up to 2,460 Hz sample rate and significant noise reduction for optimal image clarity.
- High Voltage Generator: Provides reliable continuous operation with power up to 72 KW for the 72 KW model and optimized settings for various patient sizes and scan requirements.
- Operator Console: Features a 2,000GB disk for storing large volumes of image and scan data, with reconstruction speeds up to 50 frames per second.
- Additional Features: Advanced Workflow Tools: SmartPrep for contrast monitoring, Emergency Patient Mode for urgent scans, and real-time scout images for immediate decision-making.
- Thermal Management: Designed for up to 90% less heat generation, ensuring optimal performance during continuous use and reducing thermal stress.
- Energy Efficient: Features energy-saving modes that contribute to CO2 reduction and lower electricity consumption.
Revolution Maxima combines cutting-edge imaging technology with user-friendly design and robust performance capabilities, setting a new standard for CT imaging. With high-quality imaging, reduced radiation doses, and faster scans, this system is ideal for healthcare facilities aiming to improve patient outcomes and operational efficiency.
