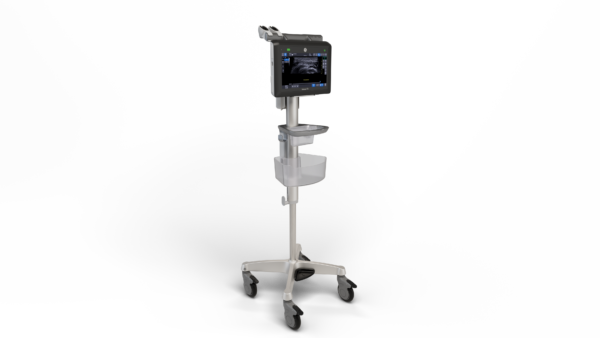

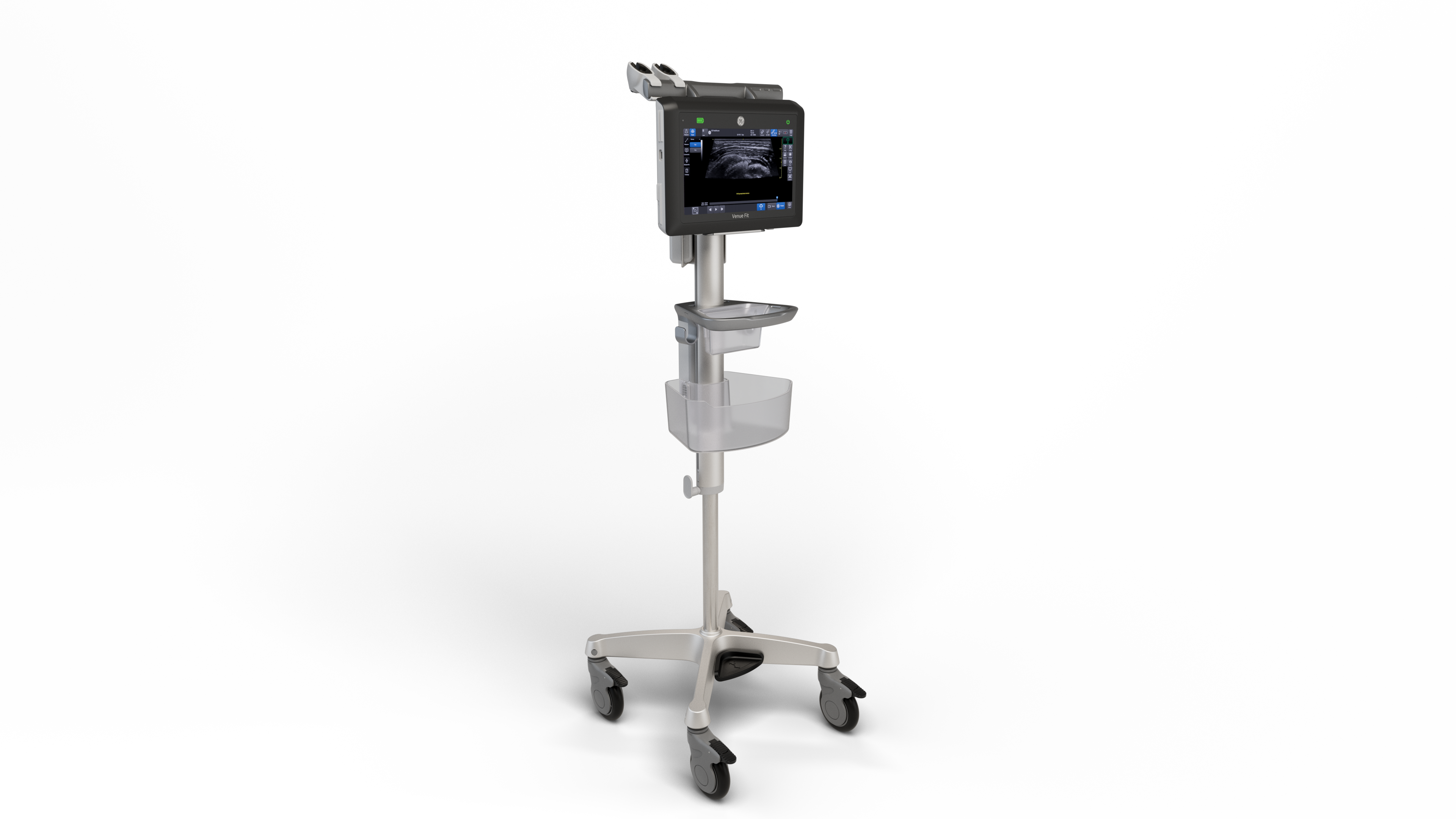

Venue Fit™ is a take anywhere ultrasound system that provides the latest technologies to help deliver a Simple, Fast and Precise solution to the Point of Care ultrasound community. This portable system provides exceptional image quality using advanced cSound™ image technology and APU backend.
Venue Fit’s innovative design includes a cleanable and intuitive 14” full touchscreen interface with a “cords off the floor” and a rugged kickstand design that makes it well suited for Point of Care environments.
The standard package includes:
- The system with a kickstand and a battery, one AC/DC, one multipurpose cup that can be used for a gel bottle or barcode reader, two detachable probe holders and one custom insert to keep probes elevated or to be used for smaller probes.
- Venue Fit comes with two active probe ports, and battery that provides at least one hours of scan time when fully charged. The Venue Fit comes with a VESA mounting plate that connects to the Venue Fit cart as well as any standard mounting device.
- It supports 14 probes:
3SC-RS, 6S-RS, 12S-RS, 12L-RS, L4-12t-RS, L4-20t-RS, 9L-RS, L8-18i-RS, C1-5-RS, C2-9-RS, 8C-RS, E8C-RS, Vscan Air S/L and Vscan Air C/L (all probes sold separately).
- CrossXBeam* (Spatial Compounding), SRI HD (Speckle Reduction Imaging in High Definition), Coded Harmonics, and B-steer+ Needle Recognition software, which harnesses pattern recognition technology that recognizes and accurately reveals the structure of a needle within anatomy, without distortion of the needle and compromising the target.
Standard Tools for Venue Fit:
- Real-Time documentation diagrams for Lung, eFAST, and Renal
Allows users to assess and document in a single-view diagram while minimizes typing with labelling tools.
- Venue View
Supports diagnostic confidence by constructing a panoramic image from individual frames allowing clinicians to view up to 60cm of anatomy being scanned while demonstrating anatomical relationships in one view.
- Catheter to Vessel Ratio measurement
Measurement tool to support clinicians in selecting the appropriate sized catheter based on vessel diameter.
- Venue Scribble
Scribble assists the user during system training and teaching by providing a touch-operated pointer and free drawing capabilities that can also be visible on an external monitor.
- Bladder Volume Tool
This simplified workflow tool features reference images as guidance and supports clinicians in calculation of the bladder volume. The tool is designed to guide bladder volume measurements to make it simple and fast.
- Follow Up tools and Imaging Insight
The Venue Fit Datasheet includes more information about the supported clinical applications, scan modes, workflow, and probes.
It includes H91210US with every console (3-year warranty).
Venue Go covers the following clinical applications:
abdominal (GYN and Urology), thoracic/pleural, ophthalmic, Fetal/OB, Small Parts (including breast, testes, thyroid), Peripheral vascular, neonatal and adult cephalic, pediatric, musculoskeletal, (conventional and superficial), cardiac (adults and pediatric), Transrectal, Transvaginal, and imaging guidance of interventional procedures (e.g. Nerve block, vascular access), Dermatology, and Dialysis.
The following scanning modes are included:
B-mode, M-Mode, Anatomical M-Mode, Color Flow Mode, Power Doppler, Continuous Wave Doppler, Pulse Wave Doppler, and Tissue Doppler Imaging (TDI).
Additional workflow features such as Raw Data for post-processing of images, Automatic Optimization, and Virtual Convex help to boost efficiency.
