DESCRIPTION

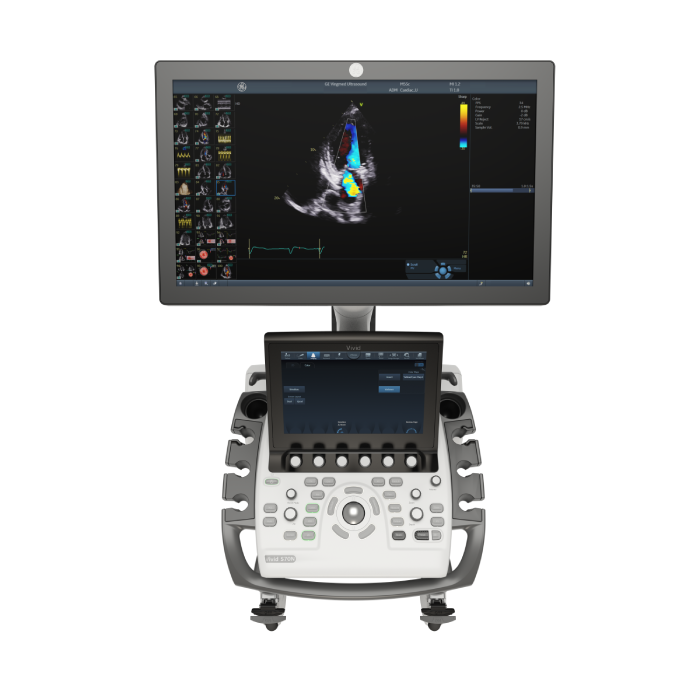

The Vivid S70N combines the proven breadth, quality and performance of the Vivid product line with a new and innovative software image processing platform: cSound™ The Vivid S70N is GE Healthcare (GEHC) cardiovascular ultrasound’s high-end scanner.
The cSound architecture benefits all Vivid S70N probes and applications. The Vivid S70N supports the following applications: Fetal/Obstetrics, Abdominal (including renal, GYN), Thoracic/Pleural, Pediatric, Small Organ (breast, testes, thyroid), Neonatal Cephalic, Adult Cephalic, Cardiac (adult and pediatric), Peripheral Vascular, Musculo-skeletal Conventional, Musculo-skeletal Superficial, Urology (including prostate), Transvaginal Transesophageal, , Transrectal, Intra-cardiac and Intra-luminal, Interventional Guidance (including Biopsy, Vascular Access), and Intraoperative (vascular).
System Architecture
GE Healthcare’s exclusive, programmable, and flexible software beamforming technology, cSound, provides exceptional image quality and power compared to conventional hardware-based beam forming technology. In 2D, cSound offers true confocal imaging without the limitation of focal zones or sacrifice of frame rate and spatial resolution. In 4D, cSound delivers volume sizes suited for full volume single-beat and multi-beat 4D acquisition (optional). Using both coherent and harmonic image processing, the system provides computational power, ease of imaging, workflow flexibility and product upgradeability.
The Vivid S70N excels in the following areas:
Exceptional image quality on the Vivid S70N is created through the use of True Confocal Imaging. The technique is enabled by the cSound platform taking advantage of advanced software image reconstruction and state-of-the-art graphics computer technology. The Vivid S70N combines Ultra Definition Clarity filtering, elevation compound imaging (considering a wider slice for 2D imaging) with the 6VT-D probe and 4Vc-D probe, HD Imaging (balanced resolution, penetration and image uniformity), virtual convex (wider field-of-view in the far field) for the linear probes and virtual apex (larger field-of-view) for the FPA probes.
Probe Technology – The XDclear™ series of probes are designed to help deliver powerful and efficient sound waves, with high bandwidth and efficiency. XDclear probe technology provides impressive deep penetration and high sensitivity while maintaining high spatial resolution.
The combination of Single Crystal, Acoustic Amplifier and Cool Stack technologies is the core technology of the XDclear series of probes.
Ease of use features make Vivid S70N an extremely productive 2D and 4D cardiovascular ultrasound system.
The combination of the touch screen control with conventional (tactile) buttons provides intuitive controls, helping the operator maintain focus on the patient and the ultrasound images during the exam. The touch screen can also provide alpha-numeric (A/N) keyboard entry or a dedicated A/N keyboard option can be purchased.
Ease of use for the operator in 2D imaging is provided by the cSound technology delivering auto optimized excellent image quality with little manipulation along with automated tools like 2D Auto EF 3.0 with AI-based View Recognition, Easy AutoEF, AFI 3.0 Productivity Package with AI-based View Recognition, AFI for RV, AFI for LA, Easy AFI LV, Cardiac Auto Doppler with AI Auto Measure – Spectrum Recognition, AI Auto Measure – 2D, and Scan Assist Pro.
Ease of use in 4D imaging is accomplished with a number of GEHC innovations, including Single Beat 4D, 4D visualization and navigation toolbox including FlexiSlice, FlexiViews, 4D Markers, View-X and advanced 4D chamber and value quantification packages including 4D Auto LVQ, 4D Auto RVQ, 4D Auto MVQ, 4D Auto AVQ.
SHORT DESCRIPTION
The Vivid S70N Dimension is a high-performance cardiovascular ultrasound system that combines exceptional 2D and 4D imaging with advanced AI-driven automation. Featuring GE HealthCare’s cSound beamformer and Edison™ platform, it delivers sharp, reproducible results across transthoracic and transesophageal exams. With tools like Easy AFI LV, AutoEF, and Auto Doppler, the system reduces manual steps by up to 93%, enhancing workflow efficiency. Designed for versatility, it supports both adult and pediatric imaging needs, making it an ideal choice for modern echo labs.
